臂长的规格有350mm ，450mm，550mm。

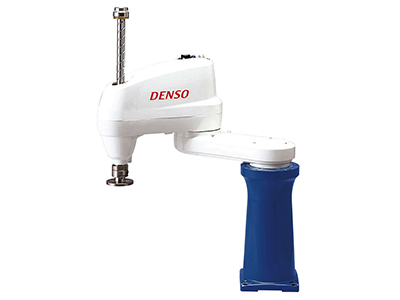

水平多关节机器人系列动画介绍
最大搬运重量5Kg。
最大允许惯性力矩是 0.1 kgm2 (1.02 kgfcms2), 增加了手的设计空间和应用空间。
根据需求可以选择具有防尘防水功能的机型。
RC8
| Group | Item | Q'ty |
| Robot & Accessories | Robot unit | 1 |
| Motor & encoder cable (option) | 1 | |
| Sheet of direction indicator labels | 1 | |
| Connector set for hand control signals (for CN20 and CN21) | 1set | |
| Dowel pins (internally threaded positioning pin and diamond-shaped pin) | 1set | |
| Controller & Accessories | Robot controller | 1 |
| Power cable (5 m) | 1 | |
| Pendantless connector (Dummy connector) | 1 | |
| Software etc | WINCAPS III trial version installer disk | 1 |
| Manuals ("Manual Pack disk" and "Safety Precautions") | 1set | |
| Warning label | 1 |
RC7
| Group | Item | Q'ty |
| Robot & Accessories | Robot unit | 1 |
| Motor & encoder cable (option) | 1 | |
| Sheet of direction indicator labels | 1 | |
| Connector set for hand control signals (for CN20 and CN21) | 1set | |
| Dowel pins (internally threaded positioning pin and diamond-shaped pin) | 1set | |
| Controller & Accessories | Robot controller | 1 |
| Power cable (5 m) | 1 | |
| Pendantless connector (Dummy connector) | 1 | |
| Spare fuses for robot controller | 3 | |
| Spare output IC for robot controller | 1 | |
| Short sockets for robot controller 2 | 2 | |
| Software etc | WINCAPS III trial version installer disk | 1 |
| Manuals ("Manual Pack disk" and "Safety Precautions") | 1set | |
| Warning label | 1 |
| Type | Item | Part No. | ||
| I/O cables | Standard I/O cable set | Consisting of 8-m I/O cables for "Mini I/O" and "HAND I/O." | 4101490940 | |
| Consisting of 15-m I/O cables for "Mini I/O" and "HAND I/O." | 4101490950 | |||
| I/O cable for "Mini I/O" (68 pins) | 8 m | 410141-2700 | ||
| 15 m | 410141-2710 | |||
| I/O cable for "HAND I/O" (20 pins) | 8 m | 410141-1740 | ||
| 15 m | 410141-1750 | |||
| I/O cable for "Parallel I/O board" (96 pins) | 8 m | 410141-3050 | ||
| 15m | 410141-3060 | |||
| Operation devices | Teach pendant | With 4 m cable | 410100-1760 | |
| With 8 m cable | 410100-1770 | |||
| With 12 m cable | 410100-1780 | |||
| Mini-pendant kit (Incl. WINCAPS III Light version) | With 4 m cable | Japanese language version | 410109-0393 | |
| English language version | 410109-0403 | |||
| With 8 m cable | Japanese language version | 410109-0413 | ||
| English language version | 410109-0423 | |||
| With 12 m cable | Japanese language version | 410109-0433 | ||
| English language version | 410109-0443 | |||
| Pendant extension cable | 4 m | For TP / MP | 410141-3711 | |
| 8 m | For TP / MP | 410141-3721 | ||
| ForVS | Externalbatteryextensionunit | With4mcable | 410076-0360 | |
| With8mcable | 410076-0370 | |||
| With12mcable | 410076-0380 | |||
| Brakereleaseunit | With4mcable | 410191-0060 | ||
| With8mcable | 410191-0070 | |||
| With12mcable | 410191-0080 | |||
| Airpurgeunit | Onlyforprotectedtyperobots(IP67) | 410690-0050 | ||
SecondarmcoverR(withtappedholes) for VS-050/060 | Onlyforstandardtyperobots(IP40) | 411040-0950 | ||
SecondarmcoverR(withtappedholes) for VS-068/087 | Onlyforstandardtyperobots(IP40) | 411040-0500 | ||
StopperboltM8forJ2mechanicalends for VS-050/060 | Forthe2ndaxis | 410813-0970 | ||
StopperboltM5forJ3mechanicalends for VS-050/060 | Forthe3rdaxis | 410813-0950 | ||
StopperboltM10forJ2/J3mechanicalends for VS-068/087 | Forthe2ndand3rdaxes | 410813-0930 | ||
| ForHM | Flangekit | For20kgpayload | 410329-0080 | |
| For10kgpayload | 410329-0070 | |||
| ForHS | Flangekit | ForHS | 410329-0060 | |
| ForXR | Valveassembly 4-stationmanifoldvalve | Singleshipment(supplypart) | 410640-0230 | |
| Valveassembly 4-stationmanifoldvalve | Robotmountingshipping | 410640-0330 | ||
| Handcontrolcablingkit | 410879-0470 | |||
| Handcontrolcable | 2m | 410870-3350 | ||
| Full-rangestand | 411759-0010 | |||
| Half-rangestand | 411759-0020 | |||
